RightMark Audio Analyzer test report
test by John Beale June 15 2010| Testing device | TM700-lower input level (compare higher level) |
| Sampling mode | 16-bit, 48 kHz |
| Interface | |
| Testing chain | Echo MIA -> XLR-PRO -> TM700 |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -8.4 dB / -8.5 dB |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB |
+0.39, -5.53
|
| Noise level, dB (A) |
-83.1
|
| Dynamic range, dB (A) |
63.9
|
| THD, % |
1.012
|
| THD + Noise, dB (A) |
-37.5
|
| IMD + Noise, % |
0.797
|
| IMD at 10 kHz, % |
1.119
|

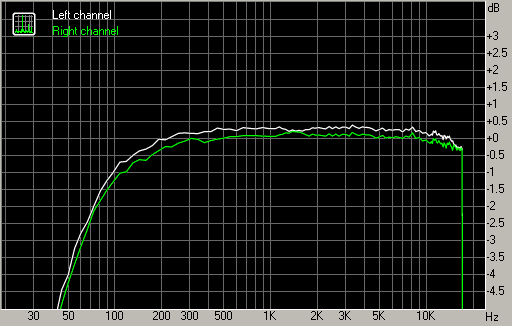

Frequency response
| From 20 Hz to 20 kHz, dB |
-17.88, +0.39
|
| From 40 Hz to 15 kHz, dB |
-5.53, +0.39
|

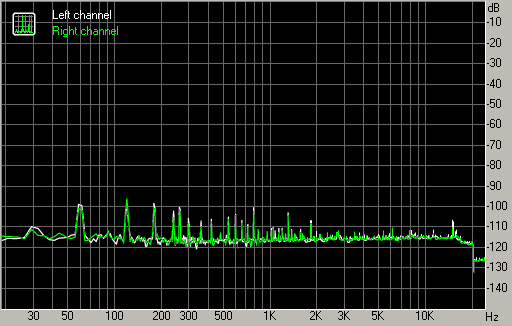

Noise level
|
Left
|
Right
|
|
| RMS power, dB |
-82.0
|
-82.2
|
| RMS power (A-weighted), dB |
-83.1
|
-83.2
|
| Peak level, dB FS |
-70.0
|
-70.0
|
| DC offset, % |
+0.0
|
+0.0
|
Dynamic range
|
Left
|
Right
|
|
| Dynamic range, dB |
+61.5
|
+63.4
|
| Dynamic range (A-weighted), dB |
+62.9
|
+64.9
|
| DC offset, % |
+0.00
|
+0.00
|

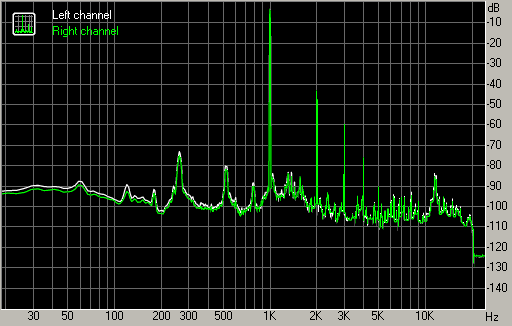

THD + Noise (at -3 dB FS)
|
Left
|
Right
|
|
| THD, % |
+1.0013
|
+1.0219
|
| THD + Noise, % |
+1.0276
|
+1.0413
|
| THD + Noise (A-weighted), % |
+1.3191
|
+1.3434
|

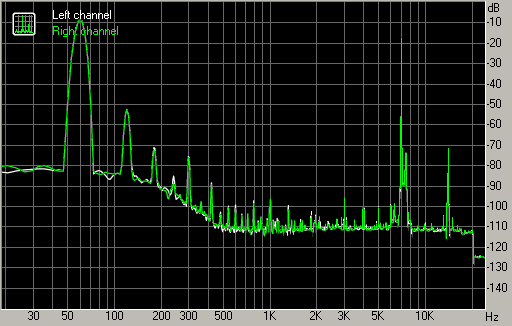

Intermodulation distortion
|
Left
|
Right
|
|
| IMD + Noise, % |
+0.7896
|
+0.8041
|
| IMD + Noise (A-weighted), % |
+0.5518
|
+0.5655
|

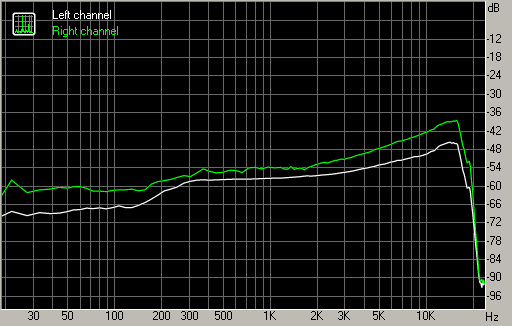

Stereo crosstalk
|
Left
|
Right
|
|
| Crosstalk at 100 Hz, dB |
-66
|
-60
|
| Crosstalk at 1000 Hz, dB |
-56
|
-53
|
| Crosstalk at 10000 Hz, dB |
-49
|
-41
|

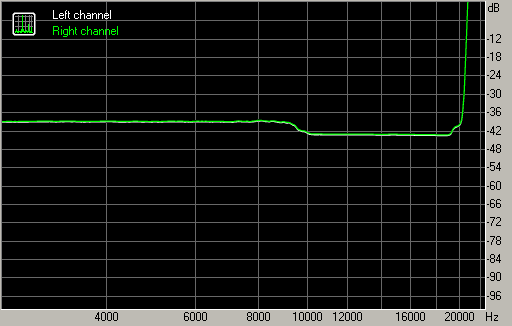

IMD (swept tones)
|
Left
|
Right
|
|
| IMD + Noise at 5000 Hz, |
1.1050
|
1.1326
|
| IMD + Noise at 10000 Hz, |
1.1050
|
1.1326
|
| IMD + Noise at 15000 Hz, |
1.1050
|
1.1326
|
